Motion simulation revisited
Based on a new concept, the GS-Cobra motion simulator is engineered to provide direct, strong and precisely accurate forces where it matters on your body.
Thanks to this new approach, the GS-Cobra motion simulator is the only simulator to provide:
- strong and sustained high fidelity forces
- virtually no delay in force rendering
- no unwanted, parasitic force at all
VR Friendly
With the GS-Cobra, movements of your head are realistic, unlike in tilting motion simulators. As a result, VR headsets tracking does not need to be corrected. Just put your VR headset on, and you are ready!
Extreme control for performance
Tailored to fully use the hardware capabilities, the GS-Cobra motion simulator software gives you unprecedented control in less than 1% CPU usage! Create custom profiles to adjust what you feel as wanted.
Minimum footprint, home friendly, cockpit friendly
54cmx73cm.(21.3" x 28.7") No more than an office chair. Pure concentrate of power with a slick look.
Easy to integrate in existing cockpit, can also be used directly on the floor too as the sitting height is the same as in a sport vehicle. No need to attach display or controllers to the motion simulator (no platformtilting).
Silent
Compared to most motion simulators (using ballscrew actuators), the GS-Cobra is rather silent. It is most of the time as quiet as a force feedback steering wheel.
Safe
With enclosed actuators, entirely upholstered frame, physically limited movement range, the GS-Cobra motion simulator is very user friendly. Automatic shut down in case the computer crashes or the link is lost. But remember, this is not a toy!
Mechanics
Degrees of freedom: 2(deliver forces in all horizontal direction) + vertical forces added to front/back axis.
Actuators: 2 custom actuators built for this application.
Actuators speed: 50cm/s - 20"/s
Max force: 18 Kg - 40 Lbs
Force resolution: 600 force levels on each degree of freedom. 250 forces updates per second.
Mechanism: Steel, aluminum, rack/pinion in acetal resin for noise reduction, polyamid with glass fiber reinforcements.
Frame: Wooden frame covered on all sides with PU foam and PU leather upholstery. Each component is upholstered separately to cancel potential noise. 300+ wood screws, hundreds steps to produce a seat.
Harness: 4 points custom harness, removable.
Power - Software
Power supply: external 110v/220v in, 24V DC out power supply (supplied with the product). 200 watts power. Euro - style plug (adapter needed for UK/US power sockets, not supplied)
Safety: Built in feature turns off the forces whenever link with computer is lost.
Connection with PC: USB. Full insulation to protect computer.
Upgradable firmware.
Software:
Less than 1% CPU usage even on low end computers
Possibility to control how forces resulting from vehicle trajectory, handling and attitude are mixed.
High definition control using 7 bands equalizers.
System Requirements (PC):
Windows-based PC, windows 7 or more
Pentium® processor or compatible
1 GB of RAM
20MB of available hard disk space
USB 1.0 port
Requirements above only concern the GS-105.
Please refer to each specific game requirement

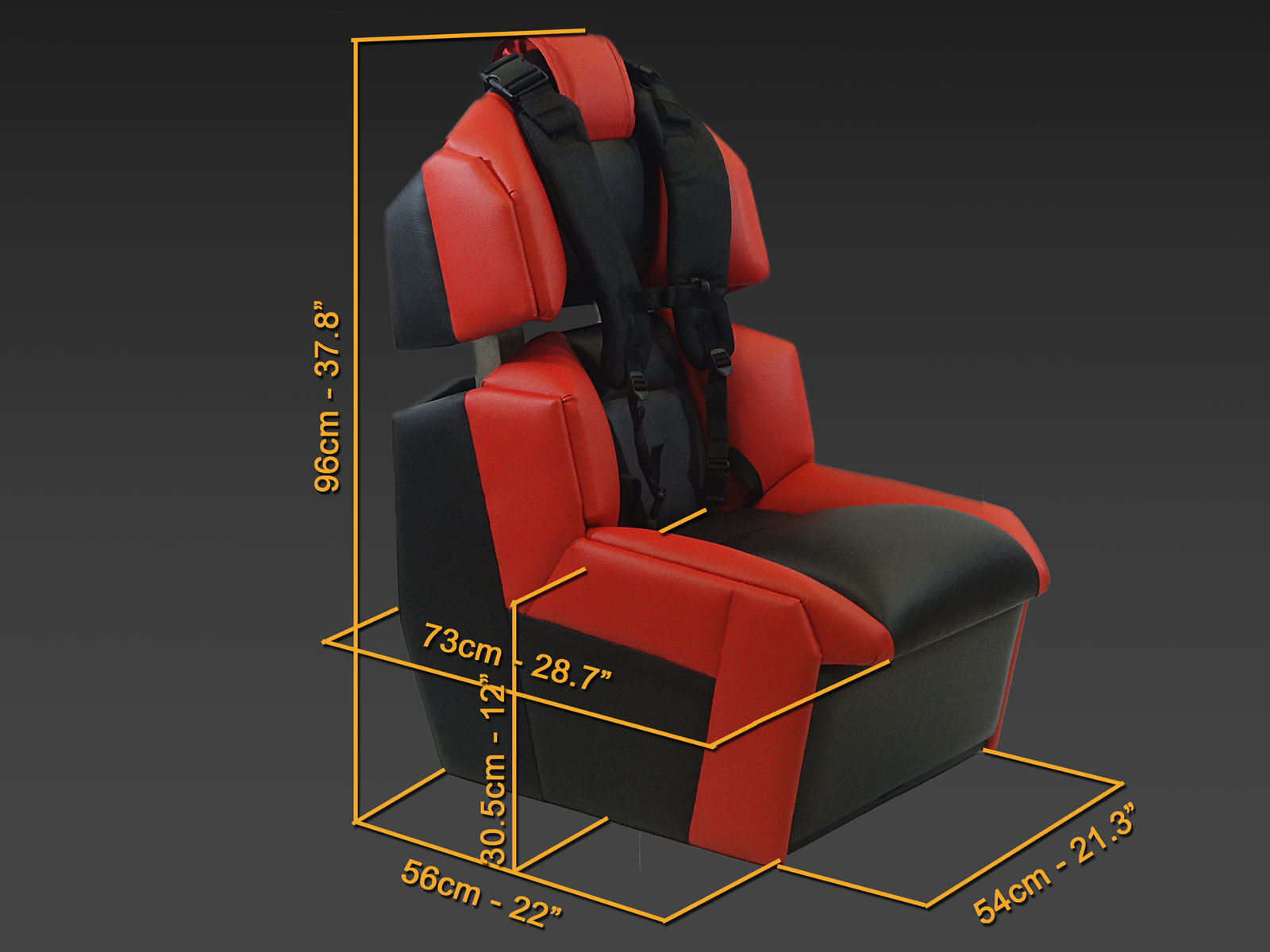

Dimensions
Package Content:
- Geko Systems GS-Cobra motion simulator
- Harness
- Power supply
- USB cord
- Storage case (for Harness, supply, USB cord)
